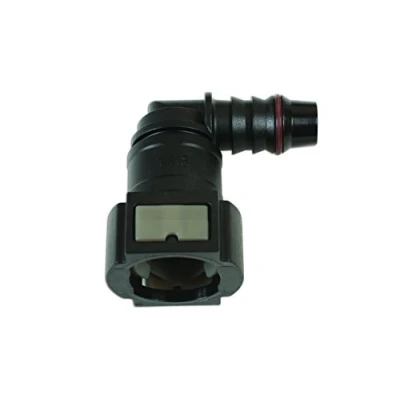

Connect 37210 Fuel Line Angled Quick Connectors 11.8mm x 10mm 3pc

ManoMano

A set of 3 angled fuel line quick connectors allowing for tight connections on 10mm fuel lines. The 90� (elbow) angle provides easier fixing in tight spaces. Quick connectors are designed for the automotive industry for the transfer of fuel, oil, water cooling systems and air. The self locking connector enables it to be connected & disconnected with ease and speed, with the wide operating temperature range ensures it can cope with the extreme temperatures that could lead to cracking and leaks. To ease the fitting of the hard plastic fuel pipe to the connectors, use Laser Tools Pipe Connector Insertion Tool, Part No. 6933. 90� angled connectors, suits: 10mm ID nylon pipe; 12mm ID rubber hose. Constant running pressure: 5 bar (72psi); max pressure: 7 bar (101psi). Operating temperature: -40�C to 120�C. Body manufactured from nylon PA12; O-ring from FKM seal (Viton). Made to SAE J2044-220908 standards. Grey tab for fuel identification (note: AdBlue� specific connectors have red tabs).

Amazon

90° Angled Fuel Line Connector from 37011 Assorted Box Suits 10mm ID Nylon Pipe and 12mm ID Rubber Hose Material - Nylon PA12 Viton seals Grey tab for fuel identification Maximum Working Pressure 5 Bar 3pc
