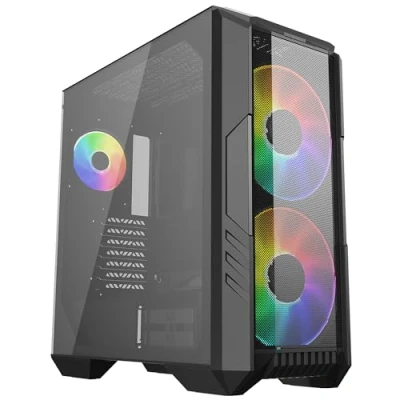

Cooler Master HAF 500 PC Case: Mid Tower, 2 x 200mm Pre Installed ARGB Fans for High Volume Airflow, Rotatable 120mm GPU Fan, Versatile Cooling Options, Tempered Glass Side Panel, Removeable Top
Description
Cazaar
HAF 500HOMECOMING CLASSIC- Mesh Front Panel- Dual 200mm ARGB Fans- Rotatable GPU Fan- USB 3.2 Gen 2 Type C Support- Screwless & Tool-Free TG Side Panel Design- Removable Top Panel- Versatile Cooling @@@XcV8zJ4S+Oxw6eKgUrfasT5aV2VwpuZE@@@
HOMECOMING CLASSICCooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups.
Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces.
Details
MESH FRONT PANELLarge filtered intakes promotes high airflow, keeping internal components running at optimal temperature.
DUAL 200MM ARGB FANSIconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build.
ROTATABLE GPU FANA 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations.
SCREWLESS & TOOL-FREE TG SIDE PANEL DESIGNThe tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel.
USB 3.2 GEN 2 TYPE C SUPPORTUSB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.
REMOVABLE TOP PANELThe top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators.
VERSATILE COOLING OPTIONSSupport for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems.
Specifications
Model NumberH500-KGNN-S00
Form FactorMid Tower
ColourBlack
MaterialsSteel, Mesh, Plastic, Tempered Glass
Dimensions ( L x W x H )516 x 224 x 510mm (Incl. Protrusions)
Motherboard SupportE-ATX*SSI CEBATXMicro ATXMini-ITX*Up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features
ExpansionSlots: 7
Drive Bays5.25": N/A2.5" / 3.5" Combo: 22.5": 2
I/O Panel2 x USB 3.2 Gen 1 (Formerly USB 3.0)1 x USB 3.2 Gen 2 Type-C1 x Single Audio Jack1 x Reset/ARGB Button
ARGB ControllerARGB Hub
Pre-Installed FansFront: 2 x 200mm ARGB FansRear: 1 x 120mm SickleFlow PWM ARGB FanTop of HDD Cage: 1 x 120mm SickleFlow PWM (GPU Fan)
Fan SupportTop: 3 x 120mm / 2 x 140mm / 2 x 200mmFront: 3 x 120mm / 2 x 140mm / 2 x 200mm (200mm mounting hold spacing 154 x 154 W / up to 30mm Thickness)Rear: 1 x 120mmTop of HDD Cage: 1 x 120mm
Radiator SupportTop: 120mm / 140mm / 240mm / 280mm / 360mmFront: 120mm / 140mm / 200mm / 240mm / 280mm / 360mmRear: 120mm
ClearancesCPU Cooler: 167mmPSU: 180mmGFX: 410mmCable Routin: 30mm (Behind motherboard tray)
Dust FiltersTop & Bottom
Power Supply SupportBottom Mount ATX
HAF 500HOMECOMING CLASSIC- Mesh Front Panel- Dual 200mm ARGB Fans- Rotatable GPU Fan- USB 3.2 Gen 2 Type C Support- Screwless & Tool-Free TG Side Panel Design- Removable Top Panel- Versatile Cooling @@@XcV8zJ4S+Oxw6eKgUrfasT5aV2VwpuZE@@@ HOMECOMING CLASSICCooler Master’s classic HAF series is making a return with HAF 500. Built for high airflow and peak performance, the HAF 500 boasts iconic 200mm large intake ARGB fans, ensuring unparalleled intake and cooling efficiency. The chassis features a dedicated GPU fan, adjustable to various GPU lengths. Ample clearance for dual 360mm radiators on the top and front panel accommodates the most advanced water cooling setups. Tool-less side panels and a removable top panel facilitates simplified, hassle-free component installation without the need to struggle with small spaces. Details MESH FRONT PANELLarge filtered intakes promotes high airflow, keeping internal components running at optimal temperature. DUAL 200MM ARGB FANSIconic 200mm ARGB fans embedded in the core of the HAF Series in design and function move high volumes of air quietly and effectively due to their large size. Utilizing the included hub, ARGB lighting can be customized to create a comprehensive theme to match your build. ROTATABLE GPU FANA 120mm fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance. The fan bracket can be rotated to accommodate various GPU size and configurations. SCREWLESS & TOOL-FREE TG SIDE PANEL DESIGNThe tempered glass side panel is secured with pins for easy removal, facilitating quick access to the internals without the use of tools. An optional screw can be installed to further secure the tempered glass side panel. USB 3.2 GEN 2 TYPE C SUPPORTUSB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission. REMOVABLE TOP PANELThe top panel is entirely removable for improved access to the components during assembly. Ease of use also facilitates the mounting of cooling solutions such as fans and radiators. VERSATILE COOLING OPTIONSSupport for up to eight 120mm fans and dual 360mm radiators on the top and front panel ensure high compatibility for liquid-cooled systems. Specifications Model NumberH500-KGNN-S00 Form FactorMid Tower ColourBlack MaterialsSteel, Mesh, Plastic, Tempered Glass Dimensions ( L x W x H )516 x 224 x 510mm (Incl. Protrusions) Motherboard SupportE-ATX*SSI CEBATXMicro ATXMini-ITX*Up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features ExpansionSlots: 7 Drive Bays5.25": N/A2.5" / 3.5" Combo: 22.5": 2 I/O Panel2 x USB 3.2 Gen 1 (Formerly USB 3.0)1 x USB 3.2 Gen 2 Type-C1 x Single Audio Jack1 x Reset/ARGB Button ARGB ControllerARGB Hub Pre-Installed FansFront: 2 x 200mm ARGB FansRear: 1 x 120mm SickleFlow PWM ARGB FanTop of HDD Cage: 1 x 120mm SickleFlow PWM (GPU Fan) Fan SupportTop: 3 x 120mm / 2 x 140mm / 2 x 200mmFront: 3 x 120mm / 2 x 140mm / 2 x 200mm (200mm mounting hold spacing 154 x 154 W / up to 30mm Thickness)Rear: 1 x 120mmTop of HDD Cage: 1 x 120mm Radiator SupportTop: 120mm / 140mm / 240mm / 280mm / 360mmFront: 120mm / 140mm / 200mm / 240mm / 280mm / 360mmRear: 120mm ClearancesCPU Cooler: 167mmPSU: 180mmGFX: 410mmCable Routin: 30mm (Behind motherboard tray) Dust FiltersTop & Bottom Power Supply SupportBottom Mount ATX
Amazon2 X 200MM ARGB FANS - Two massive 200mm ARGB fans draw high-volume airflow into the case through the mesh front panel for quiet and superior cooling; The ARGB lighting can be customized to match the build aesthetics via included ARGB hub VERSATILE COOLING OPTIONS - 4 pre-installed fans included: 2 x 200mm ARGB fans, 1 x 120mm ARGB fan (rear) and 1 x 120mm GPU fan (top of HDD cage); Supports up to 8 x 120mm fans, two 360mm radiators (front and top) and one 120mm radiator (rear) EASY VIEWING, EASY ACCESS - A tempered glass side panel (featuring tool-free design) is ideal for showing off system builds; The fully removeable top panel allows more access during component assembly (particularly radiator & fan cooling solutions) ULTIMATE HARDWARE SUPPORT - The case accommodates ITX, micro ATX, ATX, SSI CEB, E-ATX (up to 12" x 14.1") motherboards as well as CPU coolers up to 167mm, GFX/GPU up to 410mm, & PSUs up to 180mm RICH CONNECTIVITY I/O PANEL - The I/O panel features 2 x USB 3.2 Gen 1 ports, 1 x audio jack, 1 x Reset/ARGB button and 1 x USB 3.2 Gen 2 Type-C port allowing for streamlined data transmission and unlimited connectivity
