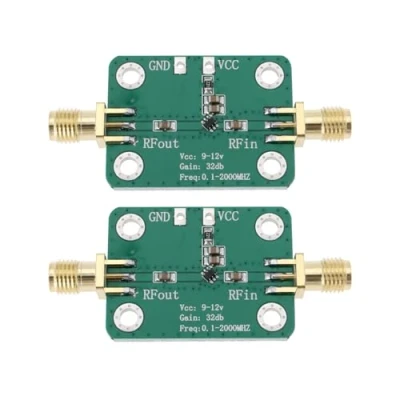

Create idea 2pcs RF Wideband Amplifier 9V 12V 30dB Low noise LNA Broadband Module 0.1 2000MHz AMP for Short Wave FM Radio Remote Control Receiver

This LNA Low Noise RF Broadband Amplifier Provides a consistent gain of up to 30 dB within the 0.1-2000 MHz range. Flatness can be optimized to under 1 dB for frequencies below 500 MHz after careful adjustment. Operates down to 0.1 MHz with default capacitors (0.1 uF) and can be further adjusted to as low as 5 KHz with a 10 uF capacitor for extended low-frequency range. Allows gain adjustment via power supply changes (5-8V), which increases gain with voltage, providing flexibility in radio frequency amplification tasks, including those requiring automatic gain control. At 8-10V, this amplifier achieves a stable, low-noise, 30 dB gain with good frequency consistency and reduced distortion. At 12V, the maximum low-frequency gain reaches 32.5 dB, offering an optimal balance of gain and low noise. Package Contents 2pcs amplifiers are suited for use in radio frequency front-end circuits and other RF amplification tasks.
