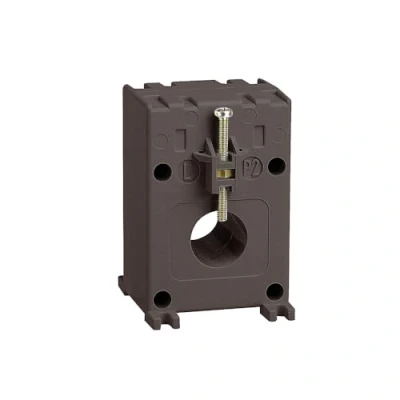

Current converter for low voltage mains measurements cable/current rail push through, primary current: 800 A, secondary 5 cable cross section: 21 mm², accuracy class: CL 0.5 1
Prices from
28.60
Featured
|
£ 28.60 |
To Shop
|
|
£ 28.60 |
To Shop
|
| COMPARE ALL WEBSHOPS (2) | ||
Description
Amazon
Push-through current converter for cable or rail passage in low voltage network: primary current 800A, secondary current: 5A Accuracy classes: 0.5: / | Kl. 1: 1.5 VA | Kl. 3: 2.5VA Cable/rail entry window size: rails: 16 x 12.5 mm | cable: diameter 21 mm² Converter connections: the screw terminals of the converters are marked with 2 common designations: primary circle P1(K) - P2(L) secondary circle s1(k) - s2(l) Converter housing made of self-extinguishing polycarbonate, protection class (EN60529): IP40 and IP20 with sealable clamping bar. Profile type: 16 x 12.5 mm rail. Dimensions: 65 x 44 x 30 mm (H x W x D)
Description
(1)
Push-through current converter for cable or rail passage in low voltage network: primary current 800A, secondary current: 5A Accuracy classes: 0.5: / | Kl. 1: 1.5 VA | Kl. 3: 2.5VA Cable/rail entry window size: rails: 16 x 12.5 mm | cable: diameter 21 mm² Converter connections: the screw terminals of the converters are marked with 2 common designations: primary circle P1(K) - P2(L) secondary circle s1(k) - s2(l) Converter housing made of self-extinguishing polycarbonate, protection class (EN60529): IP40 and IP20 with sealable clamping bar. Profile type: 16 x 12.5 mm rail. Dimensions: 65 x 44 x 30 mm (H x W x D)
Product specifications
