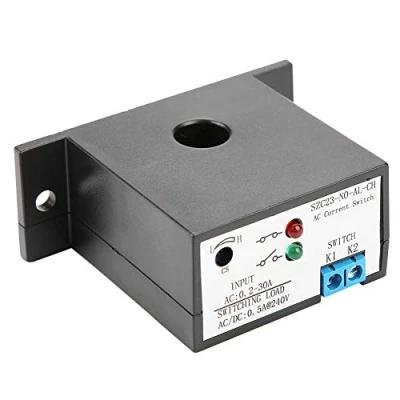

current Sensing Relay,Current Switch,SZC23 NO AL CH AC Normally Open operated switch,Adjustable 0.2 30A

SPECIFICATION :❶Model: SZC23-NO-AL-CH❷ Power supply: No ❸ rated load: ≤0.5A@240VAC /DC❹ Input current: 0.2-30AAC❺Minimum opening: 0.5±0.2A❻Maximum overload: 100%❼ leakage current: ≤0.1A❽ accuracy: 1%❾ hysteresis: ≤1% EASY TO USE :-0.2-30A AC operating current, adjustable by potentiometer, LED indicator can conveniently and intuitively indicate the working status of the switch. CURRENT SENSING RELAY :-High-power MOS tube non-contact electronic switch, the opening and closing of the switch is not limited, and the response speed reaches the ms level. STRAIGHT-THROUGH STRUCTURE DESIGN :-Direct structure design, insulation resistance voltage up to 2000V, hysteresis less than 1%, can be used under strong magnetic conditions, the shell is made of ABS self-extinguishing material. APPLICATION :-Suitable for AC current measurement and monitoring, AC motor overload protection, automatic control system electronic switches, etc., such as flashlights, buzzers, relays, single-chip computers and other charging equipment.
