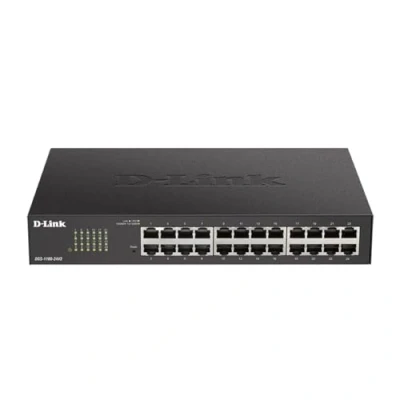

D Link DGS 1100 24V2 24 Port Gigabit Smart Managed Switch with VLAN support, layer 2 features, QoS, 802.3az EEE, Fanless , Black

D-link Dgs-1100-24v2/e Switch Black One Size / EU Plug 220V. The D-LINK DGS-1100-24V2/E is a 24-port Gigabit managed switch designed for small to medium businesses. It offers robust Layer 2 features including VLAN support (port-based, tagged, auto surveillance, voice, management, asymmetric), QoS for traffic prioritization, and advanced L2 functions like IGMP snooping and Spanning Tree Protocol. With a 48 Gbps switching capacity and 35.71 Mpps forwarding speed, it handles network traffic efficiently. Security is enhanced with storm control and DoS attack prevention. Its fanless design ensures quiet operation, making it ideal for noise-sensitive environments. The switch features both Web GUI and utility-based management options, supporting IPv4/IPv6. EU Plug included. EU Plug.Specifications:Hardware.Features:- Hardware Version:B1.- Size:11´´ Desktop / Rack Mount, 1u Height.- Number Of Ports:24.- 10/100/1000 Mbps Ports Function:- Auto Mdi / Mdix.- Ieee 802.3x Flow Control Supports Full-Duplex Mode.- Supports Half/Full-Duplex Operation (Full/Half At 10/100 Mbps, Full At 1000 Mbps)Half/Full-Duplex Operation (Full/Half At 10/100 Mbps, Full At 1000 Mbps) Performance:- Switching Capacity:48 Gbps.- Maximum Forwarding Speed:35.71 Mpps.- Mac Address Table Size:8k Entries.- Packet Buffer:512 Kbits.- Flash.Memory:8 Mbyte.Power:- Typical Consumption:10.37 W.- Maximum Consumption:13.94 W Physical:- Power Input:100 To 240 V Ac.- Mtbf:2,406,109 Hours.- Acoustics:0 Db (A).- Heat Dissipation:47.57 Btu/Hr.- Weight:1.63 Kg.- Dimensions:280 X 180 X 44 Mm.- Ventilation:Without Fan Software.Features:Vlan:- Port-Based Vlan.- 802.1q Tagged Vlan.- Auto Surveillance Vlan.- Voice Vlan.- Management Vlan.- Asymmetric Vlan Vlan Group:- Supports 128 Static Vlan Groups.- Max.4094 Vids Features L2:Flow Control:- 802.3x Flow Control.- Hol Blocking Prevention.- Jumbo Frames Up To 9216 Bytes.- Igmp Snooping.- Igmp V1/V2/V3 Awareness Snooping.- Supports 64 Groups.- Igmp Snooping Querier.- Loopback Detection.- Cable Diagnostics.- Lldp Port Mirroring:- One-To-One.- Many-To-One Statistics:- Tx Ok.- Tx Error.- Rx Ok.- Rx Error Spanning Tree Protocol:- 802.1d Stp.- 802.1w Rstp Quality Of Service (Qos):- 802.1p Quality Of Service.- 4 Queues Per Port Queue Handling:- Strict.- Weighted Round Robin (Wrr) Port-Based Bandwidth Control:- Ingress:8 Kbps.- Egress:64 Kbps.Security:- D-Link Safeguard.- Traffic Segmentation.- Broadcast/Multicast/Unknown Unicast Storm Control.- Dos Attack Prevention.- Ssl Management:- Web Gui-Based (Supports Ipv4/Ipv6).- Client-Based Utility (D-Link Network Assistant Utility) Mib/Rfc Standards:- Rfc768 Udp.- Rfc791 Ip.- Rfc792 Icmp.- Rfc793 Tcp.- Rfc826 Arp.- Rfc1213 Mib Ii.- Rfc1493 Bridage Mib.- Rfc1907 Snmpv2 Mib.- Rfc1215 Mib Traps Convention.- Rfc2233 Interface Group Mib.- Rfc2665 Ether-Like Mib.- Rfc4363 Ieee 802.1p Mib.- Zonedefense Mib.- Private Mib.- Rfc951 Bootp Client.- Rfc1542 Bootp/Dhcp Client.- Rfc2236 Igmp Snooping. tradeinn Techinn
