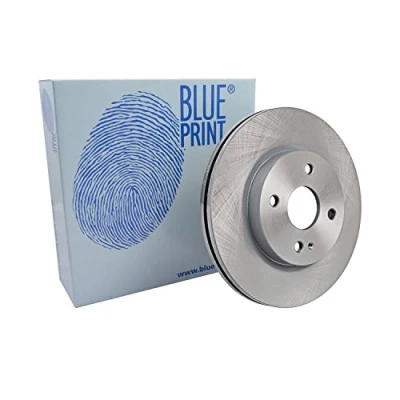

D09T33251, DA7R33251, DF7133251, DF7133251A Brake disc BLUE PRINT ADM543100 Front Axle 258mm 23mm 4 Hole 100mm internally vented Coated

Amazon

Original Blue Print spare part - Right First Time Please use the vehicle identification at the top of the page to confirm compatibility with your vehicle. All restrictions must be observed! Brake Disc Thickness: 23 mm; No. of Wheel Bolt/Stud Holes: 4; No. of Fixing Holes: 1; Height or Thickness: 44 mm; Outer Diameter: 258 mm; Pitch Circle Diameter: 100 mm; Surface: spray painted; Brake Disc Type: internally ventilated; Fitting Side: front axle; Minimum Thickness of Brake Disc: 21 mm; Weight: 5,6 kg; Centering Diameter: 55 mm OE numbers (for comparison purposes only): Mazda DF71-33-251; OEM numbers (for comparison purposes only): Nipparts N3303086, Textar 92166800, Textar 92166803, TRW DF4966, Jakoparts J3303009, Delphi BG4254 among others suitable for: Mazda: MX-5 IV (ND), Mazda2 II (DE), Mazda2 III (DJ)

AUTODOC

ADM543100; Brake disc; BLUE PRINT; Front Axle 258mm 23mm 4-Hole 100mm internally vented; for MAZDA; D09T33251, DA7R33251, DF7133251, DF7133251A
