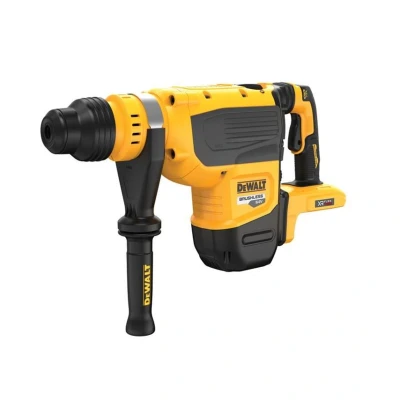

DeWalt DCH735N XR FlexVolt SDS Max Drill 54V Bare Unit DEWDCH735N

The DEWALT DCH735 XR FlexVolt SDS Max Drill is a dual-mode tool designed for hammer drilling and rotation-stop demolition tasks in brick, masonry, and light concrete. It excels at drilling anchor fixings and through-holes up to 48 mm in concrete and masonry, and core drilling up to 125 mm. Powered by a brushless motor, it offers efficient run time and reduced maintenance, with electronic speed and impact energy control to optimize performance. An active vibration control system with a floating handle provides low vibration levels for improved comfort and productivity, while an anti-rotation system instantly cuts power if tool control is lost. LED indicators contribute to safety, and Wireless Tool Control enables wireless pairing with other enabled devices for automatic activation and shutdown via the app. Supplied as a bare unit, it does not include a battery or charger.

Key features

• Two operation modes: hammer drilling and rotation-stop demolition
• Max drilling: concrete/masonry 48 mm, core bit 125 mm
• Brushless motor for efficiency and lower maintenance
• Electronic speed and impact energy control
• Active vibration control with floating handle for reduced vibration
• Anti-rotation system with power cut on loss of control
• LED indicators for safety; Wireless Tool Control capable

Technical specifications

No Load Speed: 177–355 min⁻¹. Impact Rate: 1,350–2,705 bpm. Impact Energy: 13.3 J. Max Drilling Capacity: Concrete 48 mm, Core Bit 125 mm. Weight: 8.5 kg (without battery). Voltage: 54 V. Model: DCH735N-XJ (bare unit).

Anti-rotation system detects loss of tool control and instantly cuts power. LED indicators provide safety status.
