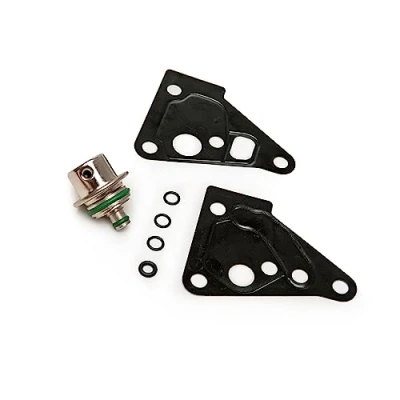

Diesel Fuel Pressure Regulator Repair Compatible With Land Rover Discovery Defender TD5

Discovery Series 2 Models (II) TD5 2.5 Diesel (1998 to 2004). Defender 90 /110 Models TD5 2.5 Diesel (1998 to 2006). Our kit is compatible with both early and late type fuel pressure regulator blocks, 2 pipe and 3 pipe. Type A Non EU3 models and Type B EU3 models. TD5 Models only Associated part numbers: LR016319, LR016318, MSX000010, MSX100080, MSO000060. Fuel leaking down from the fuel pressure block at the driver’s side rear of the engine. Often collecting on the bellhousing, starter motor or on your driveway. A strong smell of Diesel under the bonnet is also a common indication of failure. To further diagnose; fuel leaking from the hole in the fuel pressure regulator is a sure indication that the diaphragm within the unit has failed. The diaphragm within the fuel pressure regulator and / or the O-rings deteriorate within the fuel pressure regulator block causing fuel to leak from the fuel pressure block. The dealer's solution to this is to replace the complete block at 150+. However, the block rarely fails just the pressure regulator unit and on occasions the O-rings seals. Replace just the components that fail within the fuel pressure block with improved components designed to last, a vast saving over replacing the complete block. Our kit allows you to replace just the fuel pressure regulator and O-rings that fail. Our kit even includes O-rings that don’t come with a replacement fuel pressure regulator block.
