Digitus DN 93903 LSA Connection Module Cat 6 Pack of 10 Shielded Cat6 Insulation Terminal AWG 22 to 26 For Ethernet Cable, Network Installation Cable

Name: Digitus DN 93903 LSA Connection Module Cat 6 Pack of 10 Shielded Cat6 Insulation Terminal AWG 22 to 26 For Ethernet Cable, Network Installation Cable
Brand: DIGITUS
SKU: 4b74772ebf4d2bd6af2b1e5cad3128d8

1/1

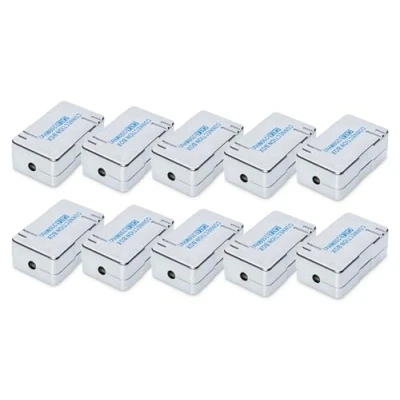

Image of Digitus DN 93903 LSA Connection Module Cat 6 Pack of 10 Shielded Cat6 Insulation Terminal AWG 22 to 26 For Ethernet Cable, Network Installation Cable

Amazon

Prices from

29.90

Description

Amazon Suitable for connecting Cat-6 installation cables, extending Cat.6 cables and replacing defective cable runs (250 MHz, 1GBase-T) Suitable for installation in the parapet duct, flush-mounted and surface-mounted. Cable installation via LSA strips, colour-coded according to EIA/TIA 568 A & B (AWG 22-26). Integrated strain relief Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C // Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 μ gold-plated contact//RJ-45 shielding: nickel-plated bronze Material housing: ABS UL-94V-0 // Circuit board: FR4, UL 94V-0 // LSA cutting terminal: Crown LSA+, UL 94V-0, galvanized phosphor bronze Wire intake: 22-26 AWG solid and stranded conductors // Insulation resistance: > 500 MOhm // Contact resistance: < 20 mm Ohm // Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 29.90

Description (1)

Suitable for connecting Cat-6 installation cables, extending Cat.6 cables and replacing defective cable runs (250 MHz, 1GBase-T) Suitable for installation in the parapet duct, flush-mounted and surface-mounted. Cable installation via LSA strips, colour-coded according to EIA/TIA 568 A & B (AWG 22-26). Integrated strain relief Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C // Contact RJ45 socket: nickel-plated phosphor bronze, 0.5 μ gold-plated contact//RJ-45 shielding: nickel-plated bronze Material housing: ABS UL-94V-0 // Circuit board: FR4, UL 94V-0 // LSA cutting terminal: Crown LSA+, UL 94V-0, galvanized phosphor bronze Wire intake: 22-26 AWG solid and stranded conductors // Insulation resistance: > 500 MOhm // Contact resistance: < 20 mm Ohm // Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
