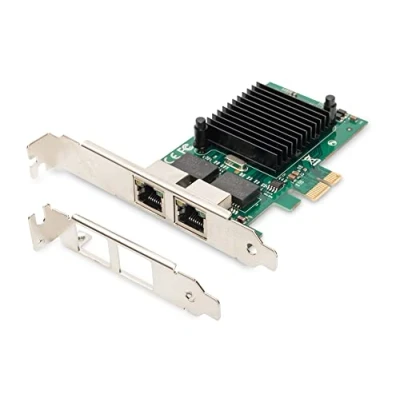

DIGITUS IO card PCIe RJ45 network 2 port Gigabit Ethernet 1 Gbit/s PCI Express

Digitus Dn-10132 2xrj45 Pci-e Expansion Card. Specifications:- Data transmission speed: 1 Gbps per port- Connections: 2 x RJ45- Chipset: Intel 82575EB (JL82575EB)- PCIe slot: PCI Express X 1- PCI Express channels: 1- Additional low-profile slot, so that the card can be used in computers with little space- Supports PCI bus power management interfaces rev 1.1 specifications- Complies with IEEE802.3ab, IEEE802.3u and IEEE802.3 specifications- Half-Duplex 10/100 Mbps, Full-Duplex 10/100/1000 Mbps- Layer 2 functions: IEEE 802.3x Flow Control, IEEE 802.1q VLAN- Supports auto MDI/MDIX crossover at all speeds- Supports RSS (Receive Side Scaling)- Supports IPv4, IPv6 protocols- Supports jumbo frames up to 9.5K- Supports UDP/TCP and IP checksum offloading- Supports Virtual Machine Device Queues (VMDq)- Supports VMDq - next generation (8VMs)- Supports statistics for management and remote monitoring- Driver support for Windows 7, 8, 8.1, 10, Windows Server 2012, Windows Server 2008, Windows Server 2016, FreeBSD, Linux, VMWare ESXi- Operating temperature: 0 °C ~ 55 °C- Operating humidity: 10 - 90% (non condensing)- Storage temperature: -60 °C ~ 140 °C- Storage humidity: 10 - 80% (non condensing). tradeinn Techinn

The PCI Express Dual-PORT LAN Card with JL82575EB chipset from Intel for X-1 interfaces can be installed in PCs and servers - the required drivers are included on a CD The two RJ-45 ports of the network card comply with the IEEE802.3/u/ab standards and transfer up to 1 Gbps - downwardly compatible to 10/100/1000 MBit/s In addition to IPv4 & IPv6 protocols, the card also supports RSS (Receive Side Scaling), VMDq (8VMs), jumbo frames up to 9.5k as well as layer 2 functions such as IEEE802.1q VLAN and IEEE802.3x flow control An optional low-profile slot bracket and various configuration options mean that the LAN card is perfect for virtual machines or for setup of routers or firewalls. The Ethernet card is supported by the following operating systems: Windows 10, 8.1, 8, 7 / Windows-Server 2019, 2016, 2012, 2008 / VMWare ESXi / FreeBSD / Linux
