DIGITUS Keystone Module Cat 6A Unshielded - RJ45 jack 500 MHz 10GBase-T AWG 26-22 tool-free mounting white

Name: DIGITUS Keystone Module Cat 6A Unshielded - RJ45 jack 500 MHz 10GBase-T AWG 26-22 tool-free mounting white
Brand: ASSMANN
SKU: 201c27a22206b8524ef4f160b836604e
Price: 1.99 GBP
Availability: InStock

1/1

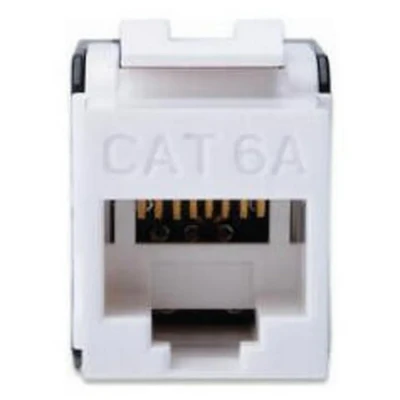

Image of DIGITUS Keystone Module Cat 6A Unshielded - RJ45 jack 500 MHz 10GBase-T AWG 26-22 tool-free mounting white

TechInn

Prices from

1.99

Featured

	£ 1.99	To Shop
COMPARE ALL WEBSHOPS (1)

Description

TechInn Assmann Cat Keystone 6a. The Keystone Module ´´DN-93606´´ from DIGITUS® is unshielded and provides with tool free installation best performance and link quality for your network.The compact design allows the installation of 24 pieces in a row of 483 mm (19´´) 1U Panels.Specifications:Technical Details:- Transmission properties:Category 6A, Class EA.- Area of application:Up to 500 MHz, 10GBase-T.- Norms:ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+.- General properties:- Suitable for 483 mm (19´´) cabinet mounting.- RJ45 female, 8P8C.- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.- Cable fixing with smart cable ties.- Tool-free installation.- Technical properties:- RJ45 female material:ABS UL 94V-0.- RJ45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.- LSA termination clamp:Krone LSA+, UL 94V-2, zinc plated phosphor bronze.- Conductor plate:FR4, UL 94V-0.- Physical properties:- Insertion force:30N max.(IEC 60603-7-5).- Retention strength:7.7 kg between jack and plug.- Operation temperature:- 20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).- Mating cycles female:> 750 acc.to ISO/IEC 11801, IEC 60603-7-5.- Clamp:> 200 acc.to ISO/IEC 11801, IEC 60603-7-5.- IDC wire size:22.- 26 AWG solid and stranded conductor.- Insulation resistance:> 500 MOhm.- Contact resistance:< 20 MilliOhm.- Dielectric strength:1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground). tradeinn Techinn

Compare webshops (1)

Sort by:

£ 1.99

Description (1)

Assmann Cat Keystone 6a. The Keystone Module ´´DN-93606´´ from DIGITUS® is unshielded and provides with tool free installation best performance and link quality for your network.The compact design allows the installation of 24 pieces in a row of 483 mm (19´´) 1U Panels.Specifications:Technical Details:- Transmission properties:Category 6A, Class EA.- Area of application:Up to 500 MHz, 10GBase-T.- Norms:ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+.- General properties:- Suitable for 483 mm (19´´) cabinet mounting.- RJ45 female, 8P8C.- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.- Cable fixing with smart cable ties.- Tool-free installation.- Technical properties:- RJ45 female material:ABS UL 94V-0.- RJ45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.- LSA termination clamp:Krone LSA+, UL 94V-2, zinc plated phosphor bronze.- Conductor plate:FR4, UL 94V-0.- Physical properties:- Insertion force:30N max.(IEC 60603-7-5).- Retention strength:7.7 kg between jack and plug.- Operation temperature:- 20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).- Mating cycles female:> 750 acc.to ISO/IEC 11801, IEC 60603-7-5.- Clamp:> 200 acc.to ISO/IEC 11801, IEC 60603-7-5.- IDC wire size:22.- 26 AWG solid and stranded conductor.- Insulation resistance:> 500 MOhm.- Contact resistance:< 20 MilliOhm.- Dielectric strength:1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground). tradeinn Techinn
