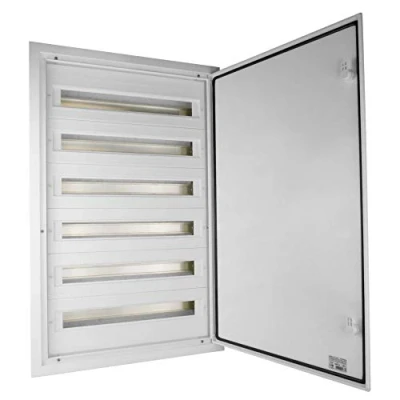

Distribution Box IP54 DARP 144 6 x 24 Flush Mounted Aluminium Door Sub Fuse 9.624 E P 6774 Clage

Number of modules: 144 (6 x 24); number of rows: 6; mounting: flush-mounted; protection class: IP54; protection class: II Un: 230/400V; Plain: 690V; In: 125A; door/door frame: aluminium white (RAL 9010); easy access to insulated N + PE rails Clamps PE / PE mm2: 4x(1x25+9x16), 2x(12X10+11X16); terminals N (mm2): 5x(1x25+9x16), 2x(12X10+11X16) Housing material: plastic; housing colour: white (RAL 9010); doors colour: aluminium white coated; cable diameter: 25 mm² Working temperature: from -25°C to +55°C; IK: 07; max. Mounting width: 125 mm; distance between bottom and TH rail: 29 mm; removable rails DIN (TH/TS 35) on a sledge (please take a look at the picture), Manufacturer: Elektro-Plast
