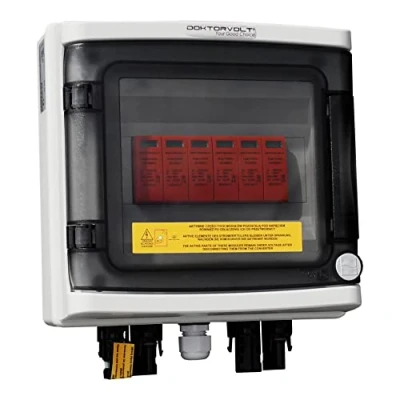

Doktorvolt 9474 Solar Connection Box Photovoltaic 1000 V DC 2 Strings Surge Protection Type 258

One of the reasons why a fire breaks out is the use of photovoltaic connections from various manufacturers. The solar plugs from other manufacturers have different characteristics - the wrong adjustment leads to a developing resistance, which leads to the rise of temperature and ultimately to fire. For safety reasons, we add the EPIC SOLAR 4 M F photovoltaic connections 4x female and 4x male when buying a solar junction box. Rated operating voltage Un: 1000 V DC; working voltage Uc: 1060 V DC; level surge protection up: up < 3.2 kV; test current in: 20 KA; current max. Imax: 40KA; Design: Varistor Protection class: T2 (C); rated voltage of the housing: 1000 V Photovoltaic connections: 2 x female and 2 x male; 2 strings, Manufacturer: Doktorvolt
