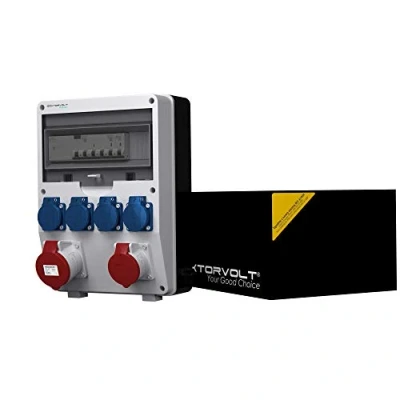

Doktorvolt Construction Power Distributor, Distribution PTD S/FI Mennekes Sockets Schuko 4 x 230 V 32 A 16 A, Siemens Complete Fi Switch, Outdoor with CEE Socket Combination

Housing - Case manufacturer: Marlanvil; number of modules: 12; number of lines: 1; mounting: surface-mounted; protection class: IP65; housing uni: 1000V; case size: 360 x 260 x 125 mm; housing material: technopolymer; door material: polycarbonate; front plate colour: grey RAL 7035; back plate colour: black; screw material: EEEPEPEPEPEPDM rubber; cable gland: 1x PG-16; certificates and standards: CE CEI-23-48/49 IEC 670 Sockets and modular devices: protection against direct contact: 40A 30mA 3P+N SIEMENS; CEE sockets 1 x 16A 5P 400V IP44 type 1385 Mennekes; 1 x 32A 5P 400V IP44 type 3451 Mennekes; CEE sockets fused: 1 x C16 3P 10kA Siemens; 1 x C32 3P 6kA Siemens; 230V 16A sockets: 4 x 230V 16A Mennekes 11011 IP54 2P+E Schuko; 230V sockets fused: 2 x C16 1P 10kA Siemens S; S; phasschienE:3-phase rail 16 mm2 8-pin Fi switch certificates and standards: CCC VDE ÖVE CE DIN EN 61246-2 IEC 81346-2:2009 LSS certificates and standards: CE CEBEC IMQ VDE; wiring type: H07V-K cable 2.5, 4 mm2 yellow-green; H07V-K cable 2.5, 4, 6. mm2 mm2 black ; H07V-K cable 2.5, 4.6 mm² blue; general: rated current: 80A; rated voltage: 230 / 400 V 50Hz AC; ICC ≤ 10 kA; RDF 0.7 Manufacturer's information: manufacturer: doctor volt; manufacturer certificates and standards: TÜV SÜD ISO 9001:2015 CE IEC 61439; item no. DV-4852-D; EAN: 5907589334852, Manufacturer: Doktorvolt
