DollaTek GY BME280 3.3 Atmospheric Pressure Sensor Module for Arduino SPI IIC

Name: DollaTek GY BME280 3.3 Atmospheric Pressure Sensor Module for Arduino SPI IIC
Brand: DollaTek
SKU: d1206ffdc4f23d5b3d8b41eca93c1b4e

1/1

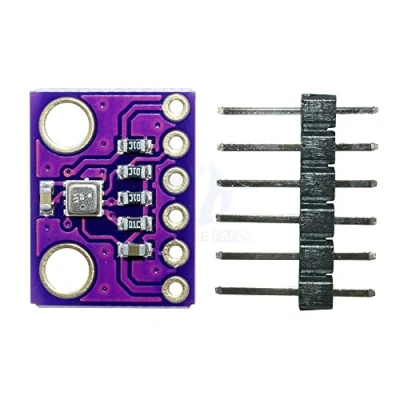

Image of DollaTek GY BME280 3.3 Atmospheric Pressure Sensor Module for Arduino SPI IIC

Amazon

Prices from

6.99

Description

Amazon ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor. The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm. Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO. If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1! 0

Compare webshops (2)

Sponsored links · Some shops pay us a fee

Sort by:

£ 6.99

Description (1)

ME-BME280 is a Breakout Board featuring a Bosch Sensortec ME280 Temperature, Humidity & Pressure Sensor. The board has selectable I2C address jumper (solder link GS2), I2C pull-up resistors, 7 pin header 2.54mm, and two mounting holes 3.5mm. Default setting of the board; single power rail Vdd=Vdd_IO (solder link GS1), pull-ups resistors (R2, R3) 10k, protocol selector resistor 0ohm (R1), decoupling capacitors 0.1uF on both power supply pins Vdd & Vdd_IO. If you connect board to both power rails VDD_IO 1.8V and VDD 3.3V be sure to remove the power rail jumper GS1! 0
