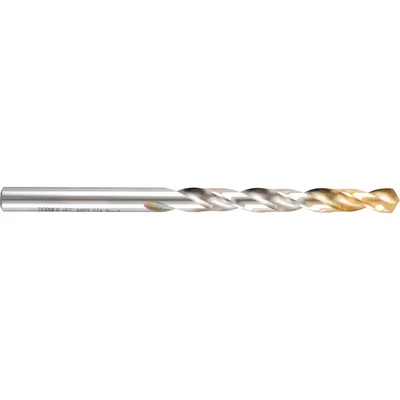

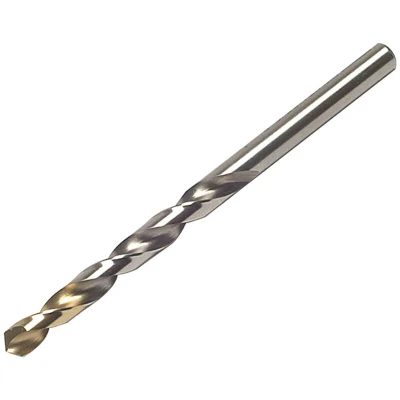

Dormer A002 1/4" HSS Straight Shank Jobber Drills TiN Tipped

General description This is a high-quality HSS drill bit with a TiN coating, designed for precise and efficient drilling in steel, stainless steel, cast iron, ceramics, plastics, and other materials. It features a self-centering split point for superb hole quality and positional accuracy, making it suitable for both hand and machine use. Technical specifications Tip diameter: 1/4 in Working length: 63 mm Overall length: 101 mm Material: High-Speed Steel (HSS) with TiN coating Standards: DIN 338RN/BS328/ISO 235 Maximum angle: 118° Cutting profile: Cross-cut Nominal tolerance: h8 Model: A002 Drilling depth: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks and holders Installation Insert the drill bit into a compatible drill chuck, ensuring it is securely tightened before use Usage Use for drilling in steel, stainless steel, cast iron, ceramics, plastics, and other materials Operate at appropriate speeds and feed rates for optimal results

The Dormer Imperial A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Suitable for both hand and machine use. Made to DIN 338RN/BS328/ISO 235 standards.Tip diameter: 1/4in. Working length: 63mm.Overall length: 101mm.PTDDOR14TIN
