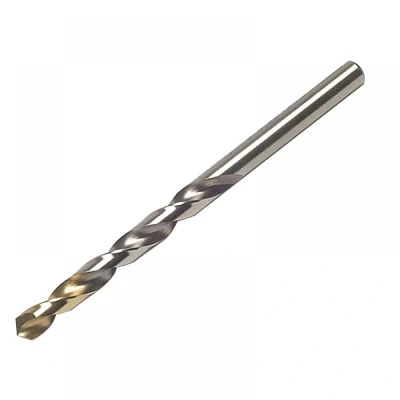

Dormer A002 8.60mm TiN-Tipped HSS Jobber Drill Bit

ManoMano

General description Series A002 HSS Straight Shank Jobber Drills feature a durable TiN tip coating that enhances tool life and performance. With a 118° self-centering split point, these drills ensure superb hole quality and positional accuracy. They are ideal for drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. Technical specifications Material: High-Speed Steel (HSS) with TiN coating Drill Diameter: 8.6mm Flute Length: 81mm Overall Length: 125mm Point Angle: 118° Number of Flutes: 2 Standards Met: BS 328, DIN 338 Cutting Direction: Right-hand Web Thickness: Strengthened Drill Diameter Tolerance: h8 Shank Diameter Tolerance: f11 Spiral Angle: 25-30° Maximum Drilling Depth: 4 times the diameter (4XD) Compatibility and accessories Compatible with standard drill chucks and drill presses Installation Insert the drill bit into a compatible drill chuck Ensure the bit is securely tightened before use Use appropriate safety gear during

Power Tools Direct

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 8.60mm.Working length: 81mm.Overall length: 125mm.PTDDOR860TIN

Amazon Marketplace

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree split point provides self centering, low thrust and easier penetration TiN Coated Tip increases surface hardness, wear resistance and improves tool life Improved hole accuracy and surface finish For use on machines or hand held applications
