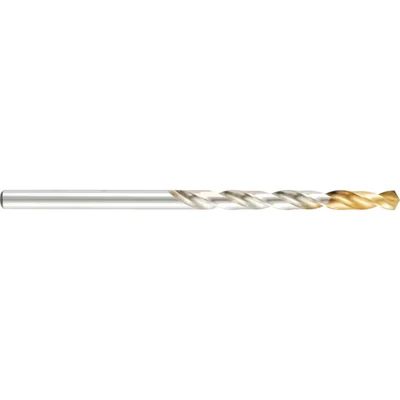

Dormer A002 HSS TiN Coated Jobber Drill 12.50mm OL151mm WL101mm DOR1250TIN

General description This high-quality Dormer Metric A002 HSS-TiN Coated Jobber Drill is designed for general drilling tasks in various materials including steel, stainless steel, cast iron, ceramics, plastics, and wood. The drill features a TiN coating that enhances durability and performance, ensuring a longer tool life. Its self-centering split point provides superb hole quality and positional accuracy, making it suitable for both hand and machine use. Technical specifications Material: HSS with TiN coating Tip diameter: 12.50 mm Working length: 101 mm Overall length: 151 mm Maximum angle: 118° Cutting profile: right-hand cut Cutting depth: up to 4 times the diameter (4XD) Nominal diameter tolerance: h8 Model: A002 Feed capacity in steel up to 800 N: 0.18 mm/W Compatibility and accessories Suitable for all standard drilling machines and setups for steel and mold materials Installation Insert the drill bit into the drill chuck ensuring it is securely tightened Use appropriate speed
