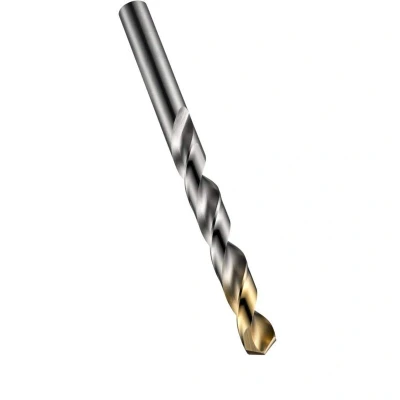

Dormer A002 HSS TiN Coated Jobber Drill 13.50mm OL160mm WL108mm DOR1350TIN

ManoMano

General description This Dormer A002 HSS-Tin Coated Jobber Drill is designed for precise drilling in a variety of materials, including steel, cast iron, aluminum, wood, and chipboard. Made from high-speed steel (HSS) and coated with Titanium Nitride (TiN), this drill bit offers enhanced durability and self-centering capabilities, making it suitable for both hand and machine use. Technical specifications Tip diameter: 13.50 mm Working length: 108 mm Overall length: 160 mm Coating: TiN (Titanium Nitride) Standards: DIN 338, BS 328, ISO 235 Maximum Angle: 118° Cutting Profile: Cross-cut Cutting Direction: Right Cutting Capacity in Steel: Up to 800 N with a feed rate of 0.18 mm/W Nominal Tolerance: h8 Model: A002 Drilling Depth: 4 times the diameter (4XD) Installation Insert the drill bit into a compatible drill chuck. Ensure it is securely tightened before use. Usage Use for standard drilling applications in steel, cast iron, aluminum, ceramics, plastics, and wood. Maintain appropriate

Amazon

118 degree split point - helps with self-centering when used by hand, reduces the push force required Titanium nitride coating - Increases service life of the drill, improves performance when drilling harder materials Improved accuracy - with more accurate holes and a better quality of finish Premium HSS material - Can be used for drilling many materials including steels, aluminium, stainless steel Versatile product - Can be used in many different hand held and machine applications
