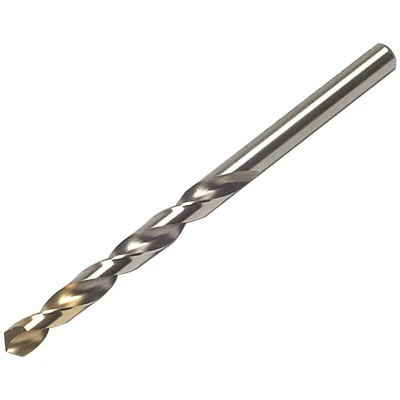

Dormer A002 HSS TiN Coated Jobber Drill 27/64in OL142mm WL94mm DOR2764TIN

General description The Dormer A002 HSS-TiN Coated Jobber Drill is designed for precise drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. It features a Titanium Nitride (TiN) coating that enhances tool life and performance, along with a self-centering split point for superior hole quality and positional accuracy. This drill is suitable for both hand and machine use, making it versatile for various applications. Technical specifications Diameter: 27/64 inches (0.4219 inches) Total length: 142mm Cutting length: 94mm Shank diameter: 10.72mm Tip angle: 118° Material: High-speed steel (HSS) Coating: TiN (Titanium Nitride) Standard: DIN 338 Tolerance: h8 Number of pieces per box: 5 Compatibility and accessories Suitable for drilling in steel and cast iron Compatible with standard drill chucks and drill presses Installation Insert the drill into a compatible drill chuck or drill press Ensure the drill is securely tightened before use

The Dormer Imperial A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Suitable for both hand and machine use. Made to DIN 338RN/BS328/ISO 235 standards.Tip diameter: 27/64in. Working length: 94mm.Overall length: 142mm.PTDDOR2764TIN
