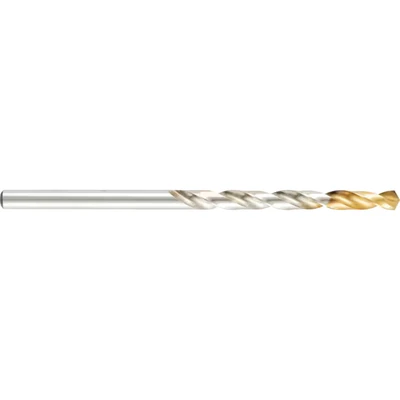

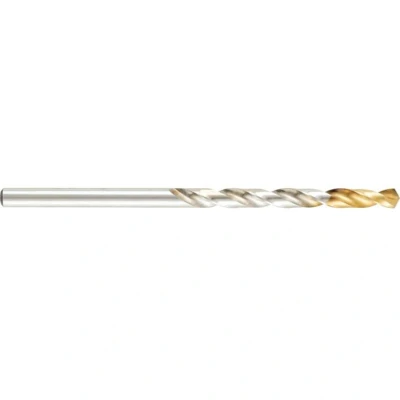

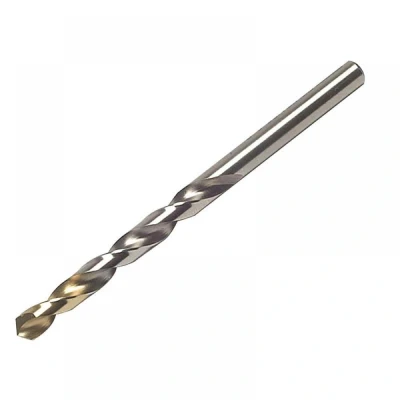

Dormer A002 HSS TiN Coated Jobber Drill 3.30mm OL65mm WL36mm DOR330TIN

ManoMano

General description This Dormer A002 HSS-TiN Coated Jobber Drill is designed for precise drilling in a variety of materials including steel, stainless steel, cast iron, ceramics, and plastics. It features a TiN tip coating that enhances tool life and performance, along with a self-centering split point for superior hole quality and positional accuracy. This drill bit is particularly effective for aluminum and other abrasive materials, making it ideal for drilling wood and chipboard. It is suitable for both hand and machine use. Technical specifications Tip diameter: 3.30 mm Working length: 36 mm Overall length: 65 mm Coating: Titanium Nitride (TiN) Type: N Maximum angle: 118° Cutting profile: Cross-section Ø 2.0 mm Shank: Cylindrical Cutting direction: Right Cutting capacity in steel: up to 800 N with a feed rate of 0.07 mm/W Model: A002 Maximum drilling depth: 4 times the diameter (4XD) Installation Insert the drill bit into a compatible drill chuck. Ensure it is securely tightened

Power Tools Direct

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 3.30mm.Working length: 36mm.Overall length: 65mm.PTDDOR330TIN

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree split point provides self centering, low thrust and easier penetration TiN Coated Tip increases surface hardness, wear resistance and improves tool life Improved hole accuracy and surface finish For use on machines or hand held applications
