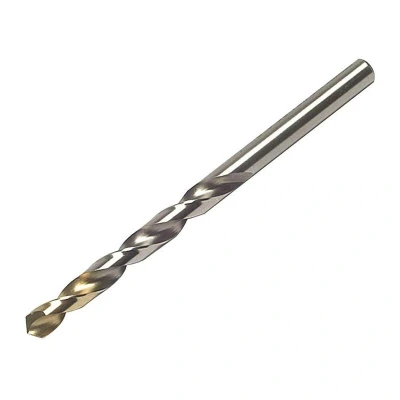

Dormer A002 HSS TiN Coated Jobber Drill 5.10mm OL86mm WL52mm DOR510TIN

General description This Dormer A002 HSS-TiN Coated Jobber Drill is a high-quality drill bit designed for metalworking and general drilling tasks. It features a Titanium Nitride (TiN) coating that enhances durability and reduces friction, making it suitable for drilling in steel, stainless steel, cast iron, ceramics, plastics, and many other materials with ease. The drill bit is particularly effective for standard drilling applications requiring clean and accurate holes. Technical specifications Material: High-speed steel with TiN coating Tip diameter: 5.10 mm Working length: 52 mm Overall length: 86 mm Maximum angle: 118° Cutting profile: Straight cut Cutting direction: Right Perforation depth: Up to 4 times the diameter (4XD) Nominal diameter tolerance: h8 Cutting capacity in steel up to 800 N: 0.1 mm/W Compatibility and accessories Suitable for drilling in steel and similar materials Compatible with standard drill chucks and drill presses Installation Insert the drill bit into a

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 5.10mm.Working length: 52mm.Overall length: 86mm.PTDDOR510TIN
