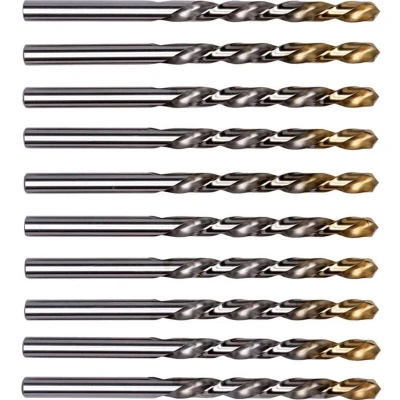

Dormer A002 HSS TiN Coated Jobber Drill 6.80mm OL109mm WL69mm DOR680TIN

General description This is a high-speed steel (HSS) drill bit with a TiN coating, designed for precise and efficient drilling in steel, stainless steel, cast iron, ceramics, plastics, and other materials. It features a self-centering split point for superb hole quality and positional accuracy, making it particularly suitable for aluminum and other abrasive materials, as well as for drilling wood and chipboard. Technical specifications Tip diameter: 6.80 mm Working length: 69 mm Overall length: 109 mm Material: High-Speed Steel (HSS) with TiN coating Type: DIN 338, Type N Cutting angle: 118° Cutting direction: Right Maximum steel feed: 0.11 mm/W at up to 800 N Nominal tolerance: h8 Model: A002 Drilling depth: 4 times the diameter (4XD) Compatibility and accessories Compatible with standard drill chucks Compatible with drill presses for steel and cast iron Installation Insert the drill bit into a compatible drill chuck, ensuring it is securely tightened Use appropriate safety equipment

Dormer Metric A002 TiN Jobber Drill Bits have a TiN tip coating for increased tool life and performance. It has a self-centring split point for superb hole quality and positional accuracy. It will drill steel stainless cast iron ceramics plastics and many other materials with ease. Made to DIN 338RN/BS328/ISO 235 standards. PLEASE NOTE ALL sizes under 2.0mm are NOT TiN Coated.Tip diameter: 6.80mm.Working length: 69mm.Overall length: 109mm.PTDDOR680TIN
