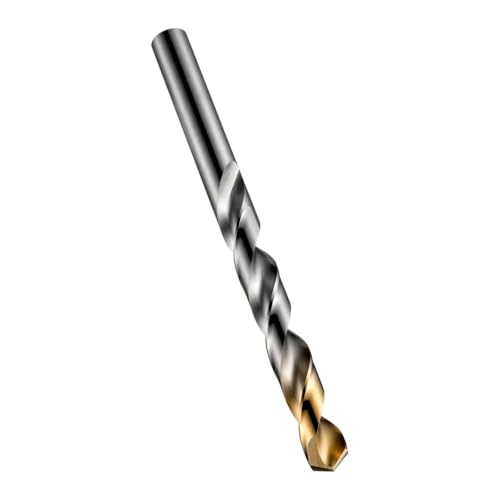

Dormer A002 HSS-TiN Coated Jobber Drills 3.20mm 65x36mm 2-Pack

General description The Dormer A002 Metric HSS-TiN Coated Jobber Drill Bits are high-quality spiral drill bits designed for precise drilling in steel and other materials. Each bit features a pointed web and fluted tip design that allows for efficient cutting with reduced axial force and accurate centering. The optimised helix angle provides greater stiffness across the diameter range, while the bright body enhances cutting performance on ductile materials. The Titanium Nitride (TiN) coating resists flank and crater wear, allowing for increased cutting speeds. Technical specifications Diameter: 3.2mm Total Length: 65mm Cutting Length: 36mm Shank Diameter: 3.2mm Standard: DIN 338 Tip Angle: 118° Material: HSS (High-Speed Steel) Coating: TiN (Titanium Nitride) Design: Modified cross-cut Type: Standard spiral groove Compatibility and accessories Compatible with standard drill chucks and drill machines Suitable for drilling steel, metal, and other hard materials Installation Insert the

The Dormer A002 Metric HSS-TiN Coated Jobber Drill Bits in Pouch Packs. Each bit has a pointed web and fluted tip design. The point design allows for efficient cutting with a reduced axial force and allows for accurate centring. The web design provides optimised strength rigidity and improves the feed of the drilling bit. The flutes allows for efficient chip form and evacuation. The bits have visible tool in-situ marking that allows for easy identification. The optimised helix angle provides greater stiffness across the diameter range. The bright body improves cutting performance on ductile materials and the Titanium Nitride coating resists flank and crater wear and has low friction that allows for increased cutting speeds. Dormer A002 HSS-TiN Coated Jobber Drill 3.20mm. Pouch of 2. Tip Diameter: 3.20mm.Working Length: 36mm.Overall Length: 65mm.PTDDORA002S32
