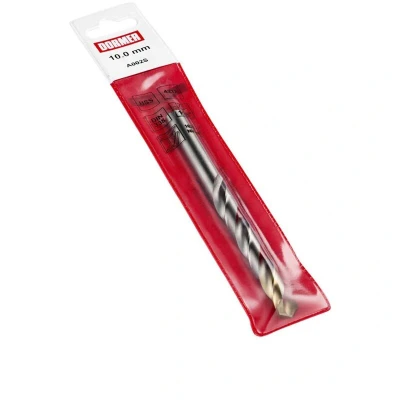

Dormer A002S HSS High Speed Steel Jobber Drill Bit with 118 Degree Tin Tipped Split Point, Single Pouch Pack

General description The Dormer A002 Metric HSS-TiN Coated Jobber Drill Bit is designed for efficient drilling in steel and other materials. With a pointed web and fluted tip design, it allows for precise, centered holes without the need for pre-centering. The drill bit features a modified 118° cross-cutting tip, ensuring optimal cutting performance and effective chip evacuation. Technical specifications Diameter: 11mm Overall Length: 133mm Working Length: 87mm Cutting Length: 94mm Shank Diameter: 11mm Tip Angle: 118° Material: High-Speed Steel (HSS) Coating: Titanium Nitride (TiN) Standard: DIN 338 Type: Short, right-hand spiral Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for use with other HSS drill bits with similar specifications Installation Insert the drill bit into a compatible drill chuck or drill press Ensure the bit is securely tightened before use Use appropriate speed and feed rates for the material being drilled Usage Use

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree split point provides self centering, low thrust and easier penetration TiN Coated Tip increases surface hardness, wear resistance and improves tool life Improved hole accuracy and surface finish Pouch pack sleeve with euro hook slot
