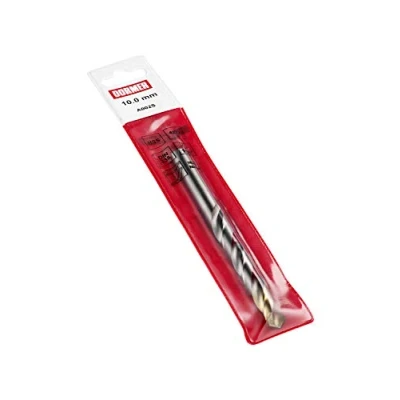

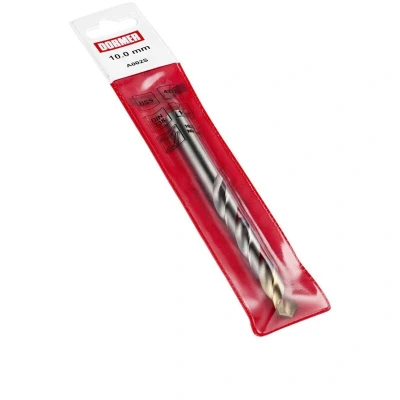

Dormer A002S HSS High Speed Steel Jobber Drill Bit with 118 Degree Tin Tipped Split Point, Single Pouch Pack

ManoMano

General description The Dormer A002 HSS-TiN Coated Jobber Drill is a high-speed steel drill bit designed for precise drilling in steel and other materials. It features a pointed web and fluted tip design that allows for efficient cutting with reduced axial force and accurate centering. The optimised helix angle provides greater stiffness, while the bright body enhances cutting performance on ductile materials. The Titanium Nitride (TiN) coating resists flank and crater wear, allowing for increased cutting speeds. Technical specifications Material: High-Speed Steel (HSS) with TiN coating Diameter: 7 mm Total length: 109 mm Cutting length: 69 mm Point angle: 118° Model: A002S Cutting direction: Right-hand Tolerance: h8 Maximum drilling depth: 4xD Compatibility and accessories Compatible with standard drill chucks for HSS drill bits Suitable for drilling in steel, metal, and similar materials Installation Insert the drill bit into a compatible drill chuck Ensure the drill is set to the

Amazon

118 degree split point - helps with self-centering when used by hand, reduces the push force required Titanium nitride coating - Increases service life of the drill, improves performance when drilling harder materials Improved accuracy - with more accurate holes and a better quality of finish Premium HSS material - Can be used for drilling many materials including steels, aluminium, stainless steel Versatile product - Can be used in many different hand held and machine applications
