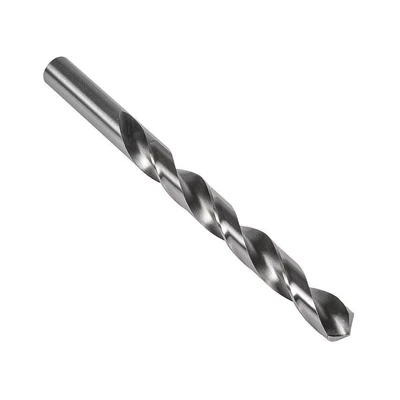

General description This high-speed steel (HSS) drill bit is designed for precise and efficient drilling in steel and cast iron. Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general-purpose engineering applications. They have good self-centering capability on a wide range of materials and are suitable for both hand and machine use. Technical specifications Tip diameter: 16.50 mm Working length: 125 mm Overall length: 184 mm Cutting angle: 118° Cutting profile: Cross-cut with diameter 3.0 mm Material: High-Speed Steel (HSS) Model: A100 Nominal diameter tolerance: h8 Maximum drilling depth: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for drilling in steel, cast iron, and similar materials Installation Insert the drill bit into a compatible drill chuck Ensure the bit is securely tightened before use Use appropriate safety gear during operation Usage Use at appropriate speeds for
