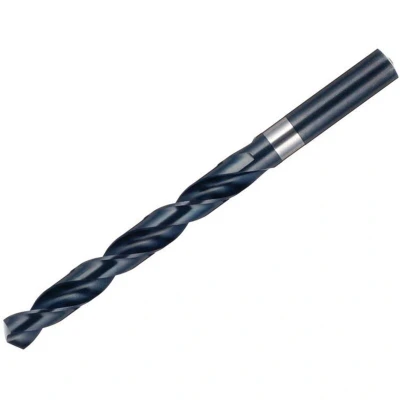

Dormer A100 6.50MM Jobber/Twist Drill HSS Straight Shank

General description This Dormer A100 HSS Jobber Drill Bit is designed for general drilling tasks in steel and cast iron. Made from high-speed steel (HSS), it features a right-hand cutting direction and a 118° tip angle, ensuring efficient and precise performance. Technical specifications Material: High-Speed Steel (HSS) Diameter: 6.5 mm Overall Length: 101 mm Cutting Length: 63 mm Tip Angle: 118° Shank: Cylindrical Maximum Steel Feed: 0.11 mm/W at up to 800 N Standard: DIN 338, Type N Tolerance: Nominal Ø h8 Depth of Drilling: 4xD Compatibility and accessories Compatible with standard drill chucks Suitable for drilling machines designed for cylindrical shank bits Installation Insert the drill bit into the drill chuck, ensuring it is securely tightened Use appropriate safety measures and wear protective gear during operation Usage Suitable for drilling in steel and cast iron Ensure proper lubrication and steady pressure during drilling Use at appropriate speeds for optimal results

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 6.50mm.Working length: 63mm.Overall length: 101mm.PTDDORA100650
