Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

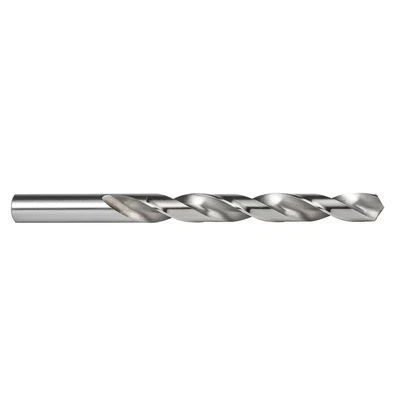

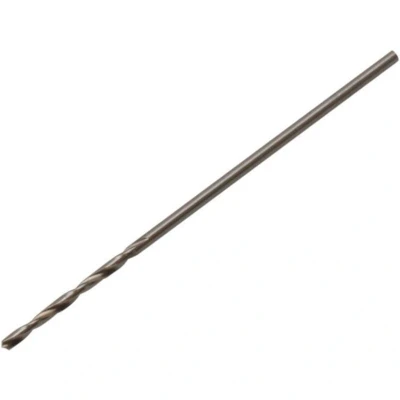

General description This is a high-speed steel (HSS) twist drill bit designed for general drilling in steel and cast iron. It features a right-hand cutting direction and is suitable for normal drilling tasks. Each drill bit is designed for precise and efficient drilling, with a nominal tolerance of h8. Technical specifications Tip diameter: 0.70 mm Working length: 9 mm Overall length: 28 mm Material: High-Speed Steel (HSS) Type: N (twist drill) Point angle: 118° Shank: Cylindrical Cutting profile: Ground with cross-cut from 3.0 mm diameter Diameter range: Starting from 1 mm Cutting depth: 4 times the diameter (4xD) Cutting direction: Right-hand Feed rate in steel up to 800 N: 0.02 mm per revolution Nominal diameter tolerance: h8 Number of pieces: 10 per box Compatibility and accessories Compatible with standard drill chucks Suitable for use in drill presses Installation Insert the drill bit into a compatible drill chuck Securely tighten the chuck to hold the drill bit in place Ensure
