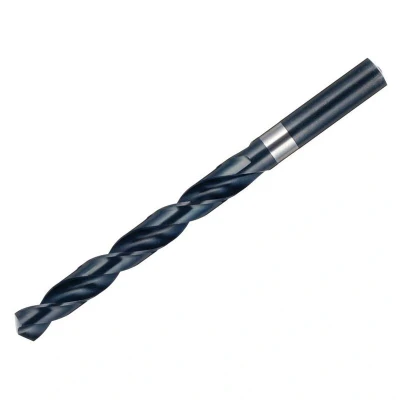

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

General description This high-speed steel (HSS) drill bit is designed for precise drilling in steel and cast iron. Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general-purpose engineering applications. They have good self-centering capability on a wide range of materials and are suitable for both hand and machine use. Technical specifications Tip diameter: 0.60 mm Working length: 7 mm Overall length: 24 mm Material: High-Speed Steel (HSS) Type: DIN 338, Type N Point angle: 118° Cutting direction: Right-hand Nominal diameter tolerance: h8 Model: A100 Depth of drilling: 4 times the diameter (4xD) Shank: Cylindrical Spiral length: 7 mm Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for drilling in steel, cast iron, and similar materials Installation Insert the drill bit into a compatible drill chuck Secure tightly to ensure stability during operation Usage Use appropriate speed and pressure for drilling in
