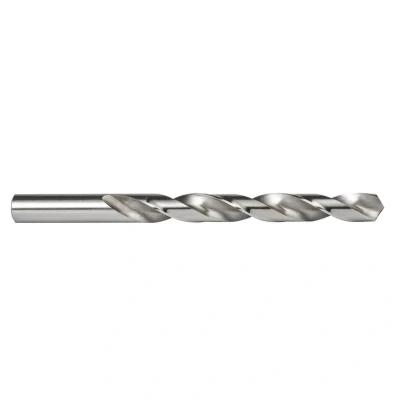

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

ManoMano

General description This high-speed steel (HSS) twist drill bit is designed for precise drilling in steel and other materials. Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general-purpose engineering applications. They have good self-centering capability on a wide range of materials and are suitable for both hand and machine use. Technical specifications Material: High-Speed Steel (HSS) Diameter: 0.80 mm Overall length: 30 mm Cutting length: 10 mm Point angle: 118° Shank type: Cylindrical Maximum drilling depth: 4xD Standard: DIN 338 Type N Tolerance: h8 Compatibility and accessories Compatible with standard drill chucks for metalworking Suitable for drilling in steel and other hard materials Installation Insert the drill bit into a compatible drill chuck Secure tightly to prevent slipping during operation Ensure the drill is set to appropriate speed for steel drilling Usage Use with appropriate safety gear, including eye protection Apply steady

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding For use on machines or hand held applications Patented Silver ring provides clear diameter marking
