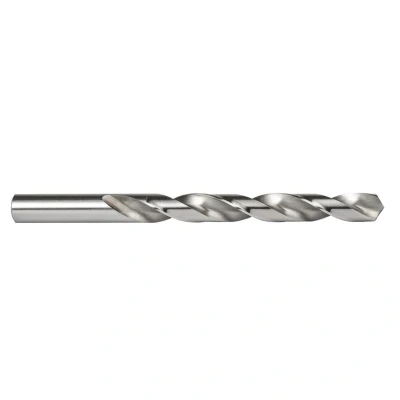

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

General description These general-purpose HSS jobber drills from the Dormer A100 series are designed for a wide range of engineering applications. They offer good self-centering capabilities on various materials and can be used with both hand tools and machines. Suitable for standard drilling tasks in steel and castings. Technical specifications Material: High-Speed Steel (HSS) Tip diameter: 11/64 inch (approximately 4.37 mm) Working length: 47 mm Overall length: 80 mm Tip angle: 118° Cutting profile: Right-hand cut Maximum drilling depth: 4 times the diameter (4xD) Tolerance: h8 Compatibility and accessories Compatible with standard drill chucks and holders for general drilling in steel and cast materials. Installation Insert the drill into a compatible drill chuck or machine spindle. Ensure the drill is securely tightened before use. Usage Use for drilling in steel, cast iron, and other similar materials. Apply appropriate cutting fluid to reduce heat and improve tool life. Operate

Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 11/64in.Working length: 47mm.Overall length: 80mm.PTDDORA1001164
