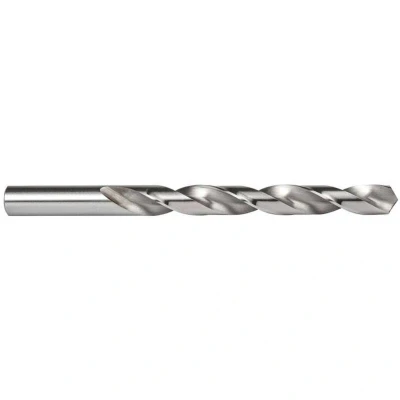

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

General description Dormer A100 3/64" HSS Straight Shank Jobber Drills are designed for general purpose drilling in a variety of materials including steels, cast iron, graphite, and aluminum alloys. These drills feature high-speed steel construction for enhanced strength and durability in machining applications, along with a black oxide coating that improves heat and wear resistance. Technical specifications Drill Diameter: 1.19 mm (3/64 in) Flute Length: 16 mm Overall Length: 38 mm Point Angle: 118° Number of Flutes: 2 Material: High Speed Steel Finish/Coating: Black Oxide Helix Type: Normal Helix Web Thickness: Standard Drill Diameter Tolerance: h8 Shank Diameter Tolerance: f11 Standards Met: DIN 338, BS 328 Usage Dormer A100 series drills are suitable for a wide range of general purpose engineering applications. They provide good self-centering capability and can be used effectively for both hand and machine drilling. Other information

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Patented Silver ring provides clear diameter marking For use on machines or hand held applications
