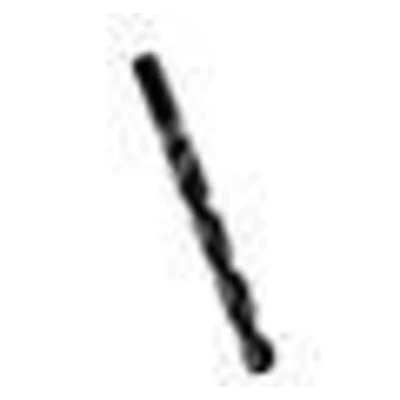

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

ManoMano

General description This Dormer A100 HSS Jobber Drill Bit is designed for general drilling tasks in steel and cast iron. It features good self-centering capability, making it suitable for a wide range of materials and both hand and machine use. Technical specifications Material: High-Speed Steel (HSS) Standard: DIN 338, Type N Tip diameter: 4.50 mm Overall length: 80 mm Working length: 47 mm Spiral angle: 118° Shank: Cylindrical Maximum drilling depth: 4xD Cutting direction: Right Cutting capacity in steel up to 800 N: 0.08 mm/W Tolerance: Nominal Ø h8 Compatibility and accessories Compatible with standard drill chucks Compatible with drill presses designed for 4.5 mm diameter bits Installation Insert the drill bit into a compatible drill chuck, ensuring it is securely tightened Use appropriate safety equipment and follow standard drilling procedures Usage Suitable for drilling in steel and cast iron Use at appropriate speeds and feeds for steel to ensure optimal performance and tool

Amazon

45mm Right handed | 118° Point Angle General Purpose Use Only DIN 338 | ISO 235 Pack 10
