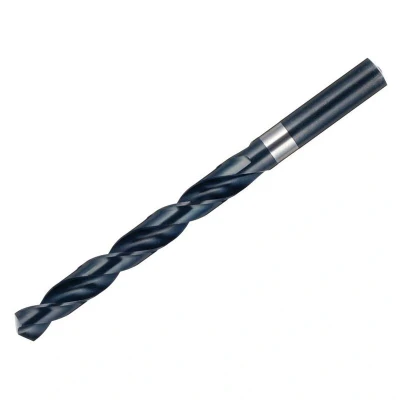

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Pack of 10 pcs

General description These general-purpose HSS jobber drills from the Dormer A100 series are designed for a wide range of engineering applications. They offer good self-centering capabilities on various materials and can be used with both hand tools and machines. Suitable for drilling in steel and cast iron, they ensure precise and efficient performance. Technical specifications Tip diameter: 1/4 inch (6.35 mm) Working length: 63 mm Overall length: 101 mm Material: High-Speed Steel (HSS) Design: Right-hand cutting Cutting angle: 118° Cutting profile: Cross-cut with a diameter of 3.0 mm Tolerance: h8 (nominal diameter) Depth of drilling: 4 times the diameter (4xD) Standards: DIN338RN BS328 ISO235 Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for use in steel, cast iron, and other common engineering materials Installation Insert the drill into a compatible drill chuck or machine holder Ensure the drill is securely tightened before use

Dormer A100 series general purpose HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 1/4in.Working length: 63mm.Overall length: 101mm.PTDDORA10014
