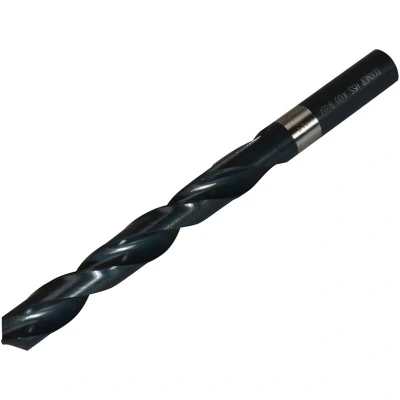

Dormer A100 HSS High Speed Steel Jobber Drill Bit with 118 Degree Standard Point, Single Pack

ManoMano

General description This A100 HSS Jobber Drill Bit is designed for general-purpose engineering applications, suitable for drilling in steel and cast iron. It features good self-centering capability and can be used with both hand and machine drills. Technical specifications Tip diameter: 14.50 mm Working length: 114 mm Overall length: 169 mm Shank diameter: 14.50 mm Point angle: 118° Material: High-Speed Steel (HSS) Coating: Dampfangelassen (steam-treated) Tolerance: h8 Cutting direction: Right-hand Cutting profile: Ground with cross-cut edges from 3.0 mm diameter Maximum drilling depth: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks that accept 14.5 mm shank bits Suitable for use in steel and cast iron Installation Insert the drill into a compatible drill chuck and tighten securely Ensure the drill is properly aligned before operation Usage Use in drilling machines or hand drills suitable for metalworking Apply appropriate cutting fluid

Amazon

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Patented Silver ring provides clear diameter marking For use on machines or hand held applications
