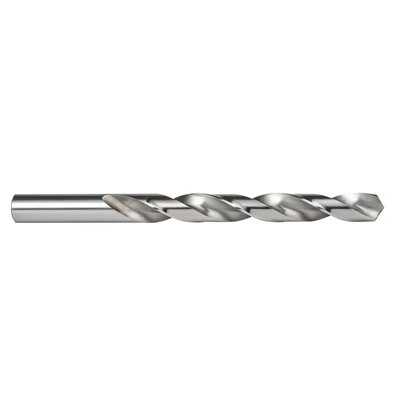

Dormer A100 HSS Jobber Drill Bit 1.00mm OL34mm WL12mm DORA100100

General description This Dormer A100 HSS Jobber Drill Bit is designed for general-purpose engineering applications. Made from high-speed steel (HSS), it offers excellent self-centering capabilities on a variety of materials and is suitable for both hand and machine use. This drill bit is ideal for various drilling tasks in steel and other metals, ensuring durability and precision. Technical specifications Tip diameter: 1.0 mm Working length: 12 mm Overall length: 34 mm Material: High-Speed Steel (HSS) Angle: 118° Profile: Cross-cut with a diameter of 3.0 mm Shank: Cylindrical Cutting direction: Right-hand Maximum steel load: 800 N Perforation depth: 4 times the diameter (4xD) Tolerance: h8 Compatibility and accessories Compatible with standard drill chucks and holders for general drilling in steel and other metals Installation Insert the drill into a compatible drill chuck, ensuring it is securely tightened Use appropriate safety measures and wear protective equipment during operation

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 1.0mm.Working length: 12mm.Overall length: 34mm.PTDDORA100100
