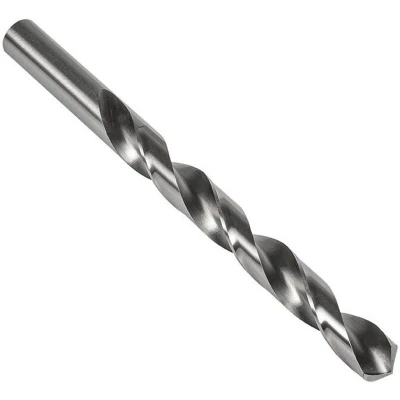

Dormer A100 HSS Jobber Drill Bit 1.60mm OL43mm WL20mm DORA100160

General description This high-speed steel (HSS) twist drill bit is designed for precise drilling in steel and cast iron. It features a 118° point angle and a cross-ground profile, making it ideal for general-purpose drilling in metalworking applications. Technical specifications Tip diameter: 1.60 mm Working length: 20 mm Overall length: 43 mm Material: High-Speed Steel (HSS) Point angle: 118° Profile: Cross-ground Shank: Cylindrical Cutting direction: Right-hand Nominal diameter tolerance: h8 Maximum feed in steel: 0.02 mm/revolution at up to 800 N Depth of drilling: 4 mm Standard compliance: DIN 338 Coating: Dampfanlassbehandlung (damp-annealed treatment) Compatibility and accessories Compatible with standard drill chucks for metalworking Suitable for use with drill presses and handheld drills Installation Insert the drill bit into a compatible drill chuck or collet Ensure the shank is securely tightened to prevent slipping during operation Set the appropriate drilling speed and

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 1.60mm.Working length: 20mm.Overall length: 43mm.PTDDORA100160
