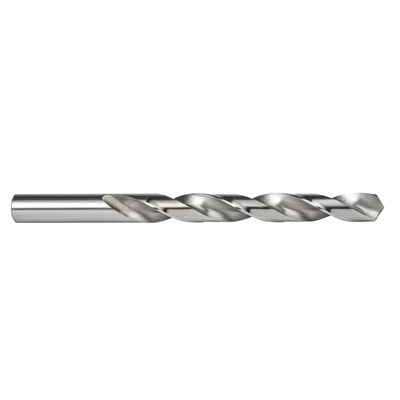

Dormer A100 HSS Jobber Drill Bit 2.10mm OL49mm WL24mm DORA100210

General description This Dormer A100 HSS Jobber Drill Bit is designed for general-purpose drilling in various materials, including steel and cast iron. It features a right-hand cutting direction and a 118° point angle for efficient penetration, making it suitable for both hand and machine use. With good self-centering capabilities, it ensures precise drilling performance. Technical specifications Material: High-Speed Steel (HSS) Model: A100 Tip diameter: 2.10 mm Working length: 24 mm Overall length: 49 mm Maximum drilling depth: 4 times the diameter (4xD) Cutting angle: 118° Nominal diameter tolerance: h8 Cutting direction: Right Steel feed capacity: up to 800 N, 0.05 mm/W Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for use in general engineering applications involving steel and cast iron Installation Insert the drill bit into a compatible drill chuck or machine spindle Ensure the bit is securely tightened before use Usage Use

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 2.10mm.Working length: 24mm.Overall length: 49mm.PTDDORA100210
