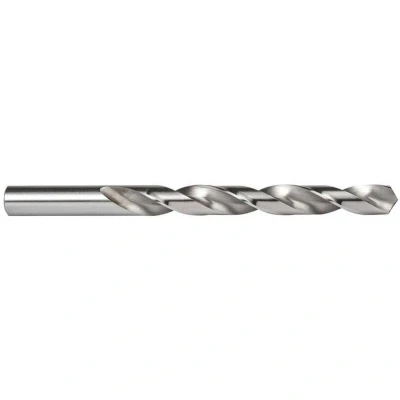

Dormer A100 HSS Jobber Drill Bit 4.70mm OL80mm WL47mm DORA100470

General description Dormer A100 Metric HSS jobber drills are designed for general-purpose engineering applications. They provide excellent self-centering capability on a variety of materials and are suitable for both hand and machine use. These drills are particularly effective for drilling in steel and castings. Technical specifications Tip diameter: 4.70 mm Working length: 47 mm Overall length: 80 mm Material: High-Speed Steel (HSS) Type: Jobber drill, DIN 338RN, BS 328, ISO 235 Angle: 118° Cutting profile: Cross-cut with a diameter of 3.0 mm Shank: Cylindrical Cutting direction: Right-hand Perforation depth: 4 times the diameter (4xD) Compatibility and accessories Suitable for use in steel and castings Compatible with standard drill chucks and holders Installation Insert the drill into a compatible drill chuck or holder Ensure the drill is securely tightened before use Usage Use in hand-held or machine drilling setups Operate at appropriate speeds for steel and cast materials Apply

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 4.70mm.Working length: 47mm.Overall length: 80mm.PTDDORA100470
