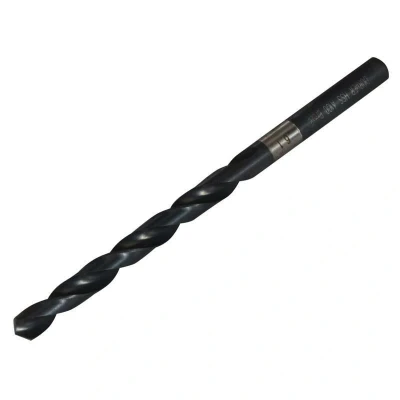

Dormer A100 HSS Jobber Drill Bit 6.10mm OL101mm WL63mm DORA100610

General description This Dormer A100 Metric HSS jobber drill bit is designed for general-purpose engineering applications. It features good self-centering capability on a wide range of materials and is suitable for both hand and machine use. Technical specifications Tip diameter: 6.10 mm Working length: 63 mm Overall length: 101 mm Material: High-Speed Steel (HSS) Point angle: 118° Cutting profile: Cross-ground from 3.0 mm diameter Shank: Cylindrical Cutting direction: Right-hand Maximum feed in steel (up to 800 N): 0.11 mm/revolution Nominal diameter tolerance: h8 Cutting depth: 4 times the diameter (4xD) Coating: Surface treatment (Dampfanlassbehandlung) Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for use in steel and cast iron Installation Insert the drill into a compatible drill chuck Secure tightly to ensure stability during drilling Use appropriate speed and feed according to material and drill size Usage Use for normal drilling

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 6.10mm.Working length: 63mm.Overall length: 101mm.PTDDORA100610
