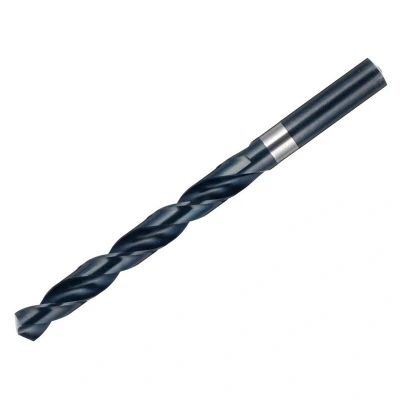

Dormer A100 HSS Jobber Drill Bit 8.00mm OL117mm WL75mm DORA100800

General description Dormer A100 Metric HSS jobber drills are versatile tools suitable for general-purpose engineering applications. They feature good self-centering capabilities on a wide range of materials and can be used with both hand and machine tools. Designed for durability and precision, these drills are ideal for various drilling tasks in steel and cast materials. Technical specifications Tip diameter: 8.0 mm Working length: 75 mm Overall length: 117 mm Material: High-Speed Steel (HSS) Angle: 118° Profile: Cross-cut with a diameter of 3.0 mm Shank: Cylindrical Cutting direction: Right-hand Maximum steel hardness: up to 800 N Cutting quality: Profile cut Nominal tolerance: h8 Depth of drilling: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks and drill presses Suitable for drilling in steel and cast materials Installation Insert the drill into a compatible drill chuck, ensuring it is securely tightened Use appropriate speed and feed
