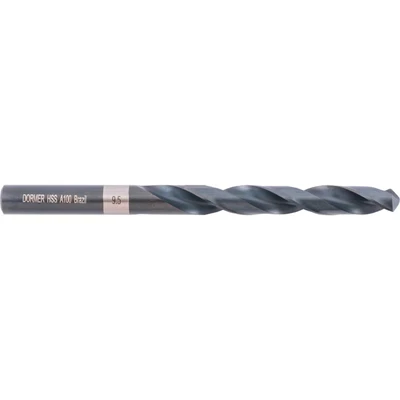

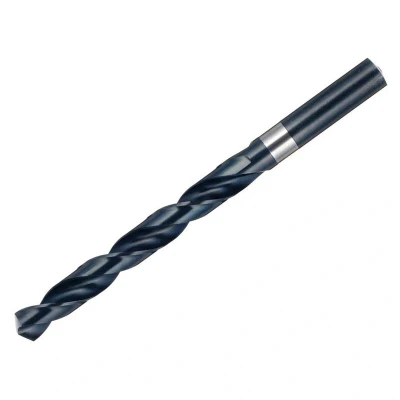

Dormer A100 HSS Jobber Drill Bit 9.50mm OL125mm WL81mm DORA100950

General description This high-speed steel (HSS) drill bit is designed for precise drilling in steel, cast iron, and similar materials. Dormer A100 Metric HSS jobber drills are suitable for a wide range of general-purpose engineering applications, featuring good self-centering capability and compatibility for both hand and machine use. Technical specifications Material: High-Speed Steel (HSS) Standard: DIN 338 Type: N Point angle: 118° Nominal diameter: 9.5 mm Total length: 125 mm Spiral length: 81 mm Cutting edge: Cross-ground with cross-grinding from Ø 3.0 mm Coating: Vapor-hardened Maximum drilling depth: 4xD Cutting direction: Right-hand Feed in steel up to 800 N: 0.14 mm/revolution Tolerance: h8 Model: A100 Compatibility and accessories Compatible with standard drill chucks that accept 9.5 mm shank Installation Insert the drill bit into a compatible drill chuck and tighten securely before use Usage Use for drilling in steel, cast iron, and similar materials Ensure proper speed and

Dormer A100 Metric HSS jobber drills are suitable for use in the majority of general purpose engineering applications. They have good self-centring capability on a wide range of materials and are suitable for both hand and machine use. DIN338RNBS328ISO235Tip diameter: 9.50mm.Working length: 81mm.Overall length: 125mm.PTDDORA100950
