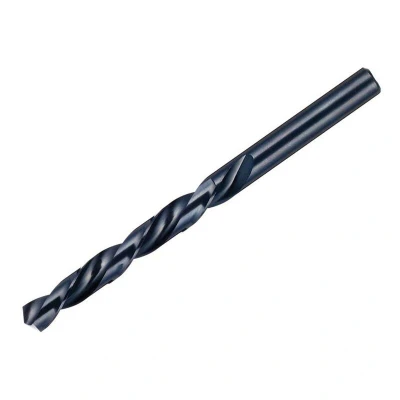

Dormer A101 Hss Left Hand Spiral Jobber Drill 5.00mm

ManoMano

General description This Dormer A101 HSS Left Hand Spiral Jobber Drill is designed for general machining applications, particularly effective for drilling in steel and other hard materials. Its left-hand spiral design makes it suitable for use on left-hand running machines, ensuring precise and efficient drilling. Technical specifications Model: A101 Diameter: 5.0mm Overall length: 86mm Working length: 52mm Tip angle: 118° Material: High-Speed Steel (HSS) Flute Geometry: Standard Helix, Left hand spiral Nominal tolerance: h8 Maximum drilling depth: 4 times the diameter (4xD) Compatibility and accessories Compatible with standard drill chucks Compatible with drill presses that accept cylindrical shank bits Installation Insert the drill bit into the drill chuck, ensuring it is securely tightened Use appropriate safety equipment and follow standard drilling procedures Usage Designed for drilling in steel and other hard materials Use at the recommended speed for optimal performance Apply

Amazon

A101 HSS Left Hand Spiral Jobber Drill 5.00mm OL:86mm WL:52mm Dormer Accessories
