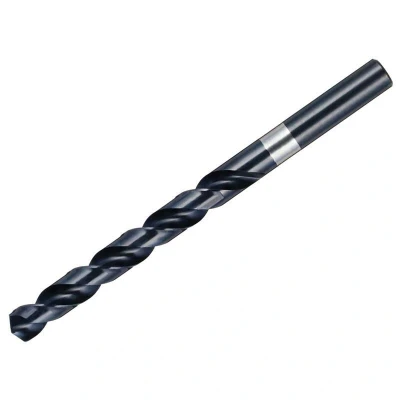

Dormer A108 Jobber Drill Split Point for Stainless Steel 8.00mm OL117mm WL75mm DOR800QS

General description The Dormer A108 Metric Split Point HSS Jobber Drill Bits are specifically designed for machining stainless steels. They feature a quick spiral helix that enables efficient swarf removal and precise drilling, making them suitable for various stainless steel applications. These drills provide clean and accurate holes with minimal effort. Technical specifications Material: High-Speed Steel (HSS) Surface Treatment: Blue oxide coating Flute Geometry: Quick helix, right-hand spiral Point Angle: 135°; split point for sizes 1.6mm and above Tip Diameter: 8.0mm Working Length: 75mm Overall Length: 117mm Number of Flutes: 2 Helix Type: High helix Flute Length: 75mm Shank Diameter Tolerance: f11 Compatibility and accessories Compatible with standard drill chucks for high-speed steel drills Suitable for drilling stainless steel and other tough metals Installation Insert the drill into a compatible drill chuck Ensure the drill is securely tightened Use appropriate coolant or

The Dormer A108 Metric Split Point HSS Jobber Drill Bits are designed specifically for machining stainless steels. The quick spiral helix enables rapid swarf removal. Manufactured to DIN 338 RW / BS328 / ISO 235. Specification Flute Geometry: Quick Helix Right hand spiral.Point Angle: 135°: up to 1.5mm: 135° Split Point 1.6mm 1/16 and above.Surface Treatment: Blue.Material: High Speed Steel.Tip diameter: 8.0mm.Working length: 75mm. Overall length: 117mm.PTDDOR800QS
