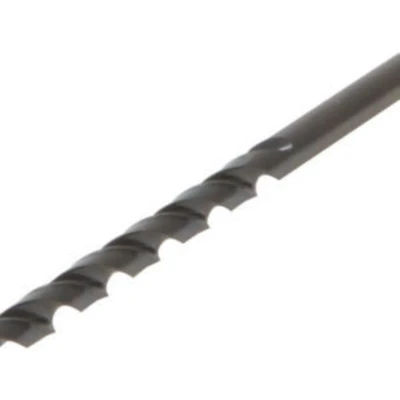

Dormer A110 6.50MM HSS S/S L/S Jobber Drill

General description The Dormer A110 Metric Long Series Drill Bits are high-speed steel (HSS) drill bits designed for deep drilling and through-hole applications in steel and cast iron. They are ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Technical specifications Material: High-Speed Steel (HSS) Standard: DIN 340, Type N Point angle: 118° Diameter (Ø): 6.5 mm Depth of drilling: 6xD Shank diameter: 6.5 mm Overall length: 148 mm Cutting profile: Cross-ground with a standard spiral groove Cutting direction: Right-hand Cutting feed in steel up to 800 N: 0.09 mm/revolution Tolerance: h8 Number of pieces per box: 10 Compatibility and accessories Compatible with standard drill chucks that accept a 6.5 mm shank. Installation Insert the drill bit into a compatible drill chuck. Ensure the drill is set to operate at appropriate speeds for steel or cast iron. Secure the workpiece firmly before drilling. Usage Use for deep drilling

The Dormer A110 Metric Long Series Drill Bits is a general purpose long reach drill. Ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Manufactured to: DIN 340RN/BS328/ISO 494.Tip diameter: 6.50mm.Working length: 97mm.Overall length: 148mm.PTDDORLS650
