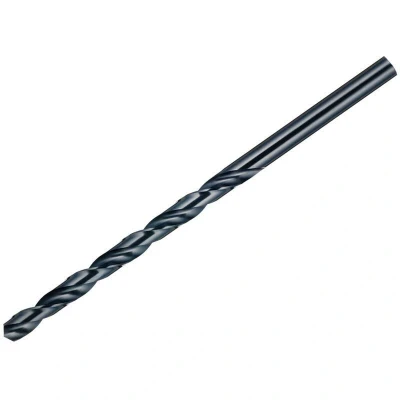

Dormer A110 HSS Long Series Drill 2.00mm OL85mm WL56mm DORLS200

General description The Dormer A110 Metric Long Series Drill Bits are designed for general purpose long reach drilling. They are ideal for creating deep holes in a variety of materials and are suitable for both hand and machine use. Manufactured from high-speed steel (HSS), these drills feature a standard helix and right-hand spiral for efficient cutting. Technical specifications Material: High-Speed Steel (HSS) Type: N Point angle: 118° Cutting direction: Right-hand Maximum feed in steel up to 800 N: 0.02 mm per revolution Nominal diameter tolerance: h8 Depth of drilling: 6 times the diameter (6xD) Shank length: 56 mm Total length: 85 mm Shank diameter: 2 mm Compatibility and accessories Compatible with standard drill chucks that accept cylindrical shanks of 2 mm diameter. Designed for use in steel and cast iron materials. Installation Insert the shank into a compatible drill chuck. Ensure the drill is set to rotate clockwise for right-hand cutting. Securely tighten the chuck to

High Speed Steel (HSS) provides good hot hardness when drilling 118 degree conventional point provides easy re-grinding Steam oxide finish reduces built-up-edge and helps lubricity Increased length allows deeper holes or increased reach For use on machines or hand held applications
