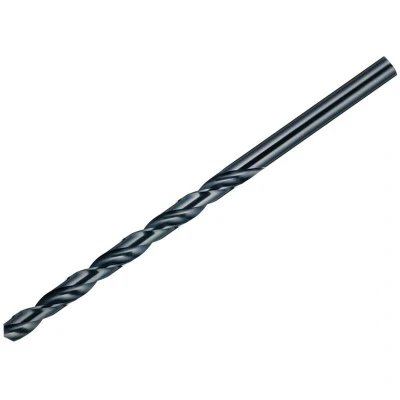

Dormer A110 HSS Long Series Drill 3.00mm OL100mm WL66mm DORLS300

General description The Dormer A110 HSS Long Series Drill Bit is a high-speed steel (HSS) drill designed for deep drilling applications. It is ideal for drilling deep holes in a wide range of materials, particularly steel and cast iron, providing precise and durable performance. The drill bit features a cross-cut profile with a cylindrical shank and a 118° point angle, ensuring accurate and efficient drilling for deep holes and bushing perforations. Technical specifications Tip diameter: 3.0 mm Working length: 66 mm Overall length: 100 mm Material: HSS (High-Speed Steel) Coating: Steam-treated (annealed under steam) Point angle: 118° Cutting profile: Cross-cut Shank: Cylindrical Maximum drilling depth: 6xD Standard: DIN 340 Tolerance: h8 Compatibility and accessories Compatible with steel up to 800 N Suitable for drilling steel and cast iron Installation Insert the drill bit into a compatible drill chuck, ensuring a secure fit. Usage Use for deep drilling and bushing perforations in

The Dormer A110 Metric Long Series Drill Bits is a general purpose long reach drill. Ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Manufactured to: DIN 340RN/BS328/ISO 494.Tip diameter: 3.0mm.Working length: 66mm.Overall length: 100mm.PTDDORLS300
