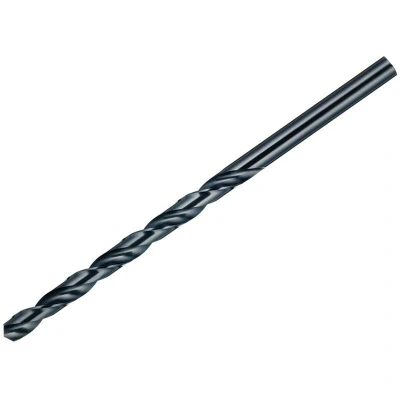

Dormer A110 HSS Long Series Drill 4.8mm OL132mm WL87mm DORLS480

General description The Dormer A110 Metric Long Series Drill Bits are versatile, general-purpose long reach drills designed for drilling deep holes in various materials. They are suitable for both hand and machine use, making them ideal for tasks requiring extended reach and precision. Technical specifications Tip diameter: 4.80 mm Working length: 87 mm Overall length: 132 mm Material: High-Speed Steel (HSS) Tip angle: 118° Cutting profile: Ground with cross-cutting Cutting direction: Right-handed Maximum drilling depth: 6 times the diameter (6xD) Nominal tolerance: h8 Compatibility and accessories Suitable for drilling deep holes in steel, cast iron, and other materials Compatible with standard drill chucks and machine tools Installation Insert the drill bit into a compatible drill chuck or machine holder Ensure the bit is securely tightened before use Use appropriate safety equipment and follow safety guidelines during operation Usage Use for drilling deep holes in various

The Dormer A110 Metric Long Series Drill Bits is a general purpose long reach drill. Ideal for drilling deep holes in a wide range of materials and are suitable for both hand and machine use. Manufactured to: DIN 340RN/BS328/ISO 494.Tip diameter: 4.80mm.Working length: 87mm.Overall length: 132mm.PTDDORLS480
